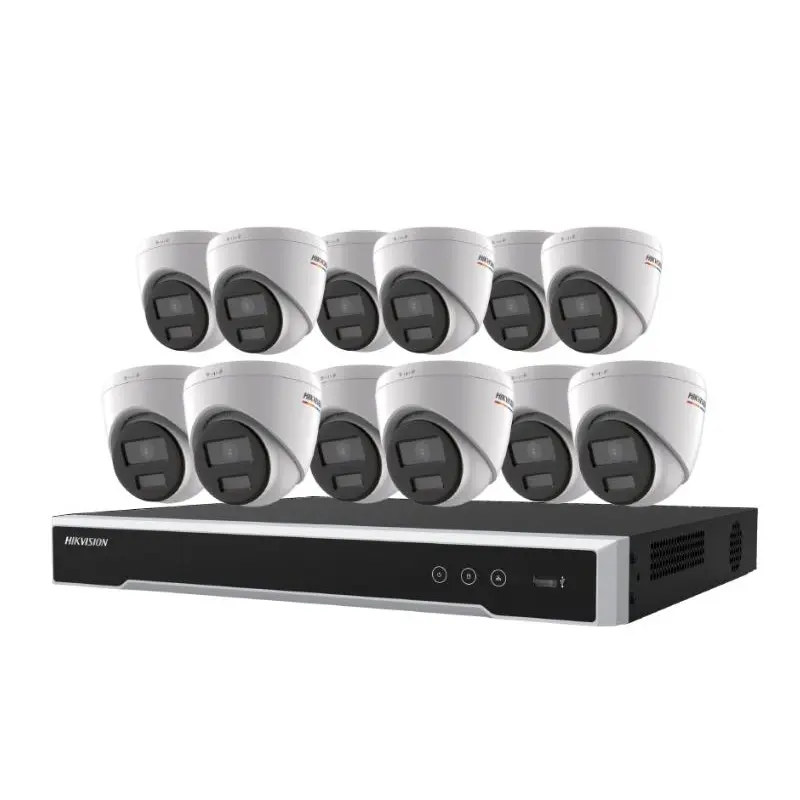

Ensemble Hikvision NVR 8MP/4K avec 12 caméras à vision nocturne ColorVu 4MP
-Record from and Manage up to 16 Cameras
-Up to 8MP Recording Resolution
-4TB Preinstalled HDD
-H.265+/H.265/H.264+/H.264 Video Codecs
-16 PoE Ports
-12 4MP 2.8mm ColorVu Turret Cameras Included
-Color Recording at Night up to 98'
-96° Horizontal Field of View
-HDMI and VGA Video Outputs
-IP67-Rated Cameras for Outdoor Use
NVR
|
Motion Detection |
Human/Vehicle Analysis: 4 Channels |
|
Channels |
16 |
|
Bandwidth |
Incoming: 160 Mb/s Outgoing: 80 Mb/s |
|
HDMI Output Resolution |
4096 x 2160 at 30 Hz, 3840 x 2160 at 30 Hz, 2560 x 1440 at 60 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz |
|
VGA Output Resolution |
1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz |
|
Video Output |
HDMI/VGA Simultaneous Output |
|
Audio Output |
1-Channel, RCA (Linear, 1 Kilohm) |
|
Two-Way Audio |
1-Channel, RCA (2 V p-p, 1 Kilohm) |
|
Decoding Formats |
H.265+, H.265, H.264+, H.264 |
|
Recording Resolution |
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
|
Synchronous Playback |
16 Channels |
|
Decoding Capability |
1 Channel at 8 MP (30 fps) 3 Channels at 4 MP (30 fps) 6 Channels at 1080p (30 fps) |
|
Streaming |
Video, Video & Audio |
|
Audio Compression |
G.711ulaw, G.711alaw, G.722, G.726 |
|
Remote |
Remote Connections: 32 |
|
Network Protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
|
Network Interface |
1 x RJ45 1000M Self-Adaptive Ethernet Port |
|
PoE Interface |
16 x 100M RJ45 Self-Adaptive Ethernet Ports |
|
PoE Power |
≤150 W |
|
PoE Standard |
IEEE 802.3af/at |
|
SATA |
2 x SATA Interfaces |
|
HDD Capacity |
8 TB per HDD |
|
HDD Included |
4 TB |
|
Alarm I/O |
N/A (4/1 Optional) |
|
USB |
2 x USB 2.0 |
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Power Consumption |
≤15 W |
|
Operating Temperature |
14 to 131°F / -10 to 55°C |
|
Operating Humidity |
10 to 90% (Non-Condensing) |
|
Rack Units |
1 RU |
|
Dimensions |
15.2 x 12.4 x 2" / 385 x 315 x 52 mm |
|
Weight |
5.7 lb / ≤2.6 kg (Without HDD) |
Camera
|
Image Sensor |
1/3", 4 MP Progressive Scan CMOS |
|
Maximum Resolution |
2560 x 1440 |
|
Shutter Speed |
1/100,000 to 1/3 Seconds |
|
Minimum Illumination |
Color: 0.001 Lux (f/1.0 with AGC) 0 Lux with Light |
|
Day/Night |
24/7 Color Imaging |
|
3-Axis Adjustment |
Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360° |
|
Lens |
2.8mm |
|
Digital Noise Reduction |
3D-DNR |
|
Field of View |
Horizontal: 96° Vertical: 52° Diagonal: 113° |
|
Lens Mount |
M12 |
|
Iris |
Fixed |
|
Aperture |
f/1.0 |
|
Depth |
Depth of Field: 6.6' to Infinity / 2 m to Infinity |
|
Built-In Microphone |
Yes |
|
WDR |
120 dB |
|
IR Range |
98' / 30 m |
|
IR Wavelength |
850 nm |
|
Video Compression |
Main Stream: H.265, H.264 Sub-Stream: H.265, H.264, MJPEG |
|
H.264 Profile |
Main, High
Main Stream: H.264+ |
|
H.265 Profile |
Main, High
Main Stream: H.265+ |
|
Video Bit Rate |
32 kb/s to 16 Mb/s |
|
Alarm Triggers |
Basic Event: Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error) |
|
Alarm Linkage |
Trigger Recording: Memory Card, Network Storage, Pre-Record and Post-Record Trigger Captured Pictures Uploading: FTP, HTTP, NAS, Email Trigger Notification: HTTP, ISAPI, Email |
|
Region of Interest |
One Fixed Region for Main Stream and Sub-Stream |
|
Frame Rate |
Main Stream: 30 fps at 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub-Stream: 30 fps at 640 x 480, 640 x 360, 320 x 240 |
|
Image Enhancement |
BLC, HLC, 3D-DNR |
|
Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance |
|
Day/Night Switching |
Day, Night, Auto, Scheduled |
|
Network Storage |
Supports microSD/SDHC/SDXC Cards up to 128 GB, Local Storage, NAS (NFS, SMB/CIFS), ANR |
|
Network Storage |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|
General Functions |
Anti-Flicker, Heartbeat, Mirror, Privacy Masks, Password Reset via Email, Pixel Counter, HTTP Listening |
|
API |
ONVIF Profiles G, S & T, ISAPI, SDK, Ehome |
|
Security |
Password Protection, Complicated Password, HTTPS Encryption, 802.1x Authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), Watermark, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for ONVIF, TLS1.2 |
|
Simultaneous Live View |
Up to 6 Channels |
|
User/Host Level |
Up to 32 Users at 3 Host Levels (Admin, Operator, User) |
|
Client |
iVMS-4200, Hik-Connect, HikCentral |
|
Web Browser |
Plug-In Required Live View: Internet Explorer 8+ Plug-In Free Live View: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|
Communication Interface |
1 x RJ45 100M Self-Adaptive Ethernet Port |
|
SVC |
H.264/H.265 Encoding |
|
Reset Button |
Yes |
|
Operating Temperature |
-22 to 140°F / -30 to 60°C |
|
Operating Humidity |
0 to 95% (Non-Condensing) |
|
Storage Temperature |
-22 to 140°F / -30 to 60°C |
|
Storage Humidity |
0 to 95% (Non-Condensing) |
|
Power Supply |
12 VDC ≤25%, 0.4 A, 5 W Maximum PoE (802.3af, Class 3) 36 to 57 V, 0.2 to 0.15 A, 6.5 W Maximum |
|
IP Rating |
IP67 |
|
Languages |
English, Ukrainian |
|
Material of Construction |
Metal & Plastic |
|
Dimensions |
4.3 x 4.1" / 109.9 x 103.6 mm |
|
Weight |
0.9 lb / 420 g |
Packaging Info
|
Package Weight |
31.495 lb |
|
Box Dimensions (LxWxH) |
19.5 x 19.5 x 17.8" |
